SK-2500 U3

click the image above to enlarge

Overview

SK-2500 U3

The SK-2500 laptop hard drive enclosure provides a combination of cutting-edge technology, durability, flexibility and portability. The incorporation of the latest USB 3.0 technology provides users with super fast transfer rates up to 10 times faster than USB 2.0. Slim, compact and simple to use, this portable aluminum enclosure is designed for the latest 2.5" SATA hard drives.

Features

USB 3.0 SuperSpeed interface
USB 2.0 backwards compatible
Designed for 2.5" drives up to 12.5mm
Large heatsink for passive cooling
Durable, compact and portable
Stackable
Fanless

By incorporating USB 3.0 SuperSpeed technology, Akitio’s SK-2500 is able to break the USB 2.0 barrier, delivering up to 10 times the speed of the older USB connection. At the same time, it is still backwards compatible with the widely used USB 2.0 technology.

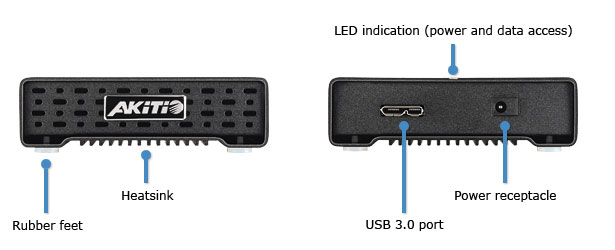

SK-2500 USB 3.0 Portable Hard Drive Enclosure

Specifications

Model No.	SK-2500 U3
Part No.	SK2-U3AA1-AKT
Certifications	CE FCC
Case material	High quality aluminum for optimized heat dissipation
Application	2.5" SATA-I or SATA-II hard drive (1.5Gb/s or 3.0Gb/s) Capacity 20GB - 1TB Height 9.5mm or 12.5mm
RAID mode	N/A
Interface/Ports	1x Mini USB 3.0 SuperSpeed port (backwards compatible with USB 2.0)
Data transfer	USB 3.0 up to 5Gbps (625MB/s) * USB 2.0 up to 480Mbps (60MB/s)
System requirements (PC)	USB 3.0: Windows XP/Vista/7 USB 2.0: Windows XP/Vista/7 Your hardware device must have the correct corresponding port (e.g. USB 3.0, USB 2.0 or PCI card)
System requirements (Mac)	USB 2.0: Mac OS 10.2 or above Your hardware device must have the correct corresponding port (e.g. USB 2.0 or PCI card)
System environment	Operating Temperature: 5°C ~ 40°C Operating Humidity: 20%RH ~ 80%RH Storage Temperature: -20°C ~ 70°C Storage Humidity: 10%RH ~ 90%RH
Power supply	Bus Power 5V/900mA (host computer has to provide sufficient USB bus power) Optional power supply (DC +5.2V/2A)
Dimensions (LxWxH)	4.9 inches x 3.1 inches x 0.9 inches 12.5cm x 7.8cm x 2.4cm
Package contents	SK-2500 enclosure (HDD not included) USB 3.0 cable User manual
Carton/Packing	Retail Box Size: 8.9 x 6.2 x 1.6 in. (22.7 x 15.7 x 4 cm) Carton Size (20pcs per carton): 17.7 x 13.1 x 10.2 in. (45 x 33.4 x 26 cm)
Remarks	PCI card with corresponding USB 3.0 driver required for use with Mac.
