Neutrino U3+

Neutrino U3+
click the image above to enlarge


Neutrino U3+ Neutrino U3+ Neutrino U3+ Neutrino U3+

USB 3.0 SuperSpeed




Overview

Neutrino

The Neutrino laptop hard drive enclosure provides a combination of cutting-edge technology, durability, flexibility and portability. Slim, compact and simple to use, this portable aluminum enclosure is designed for the latest 2.5" SATA hard drives.

Features

  • USB 3.0 SuperSpeed interface
  • USB 2.0 backwards compatible
  • FireWire 800 interface
  • FireWire 400 backwards compatible
  • Designed for 2.5" drives up to 12.5mm
  • Large heatsink for passive cooling
  • Durable, compact and portable
  • Stackable
  • Fanless

By incorporating USB 3.0 SuperSpeed technology, Akitio’s Neutrino is able to break the USB 2.0 barrier, delivering up to 10 times the speed of the older USB connection. At the same time, it is still backwards compatible with the widely used USB 2.0 technology.

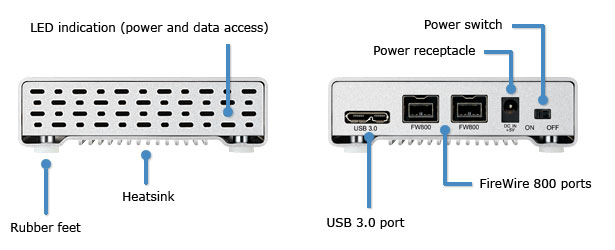

Neutrino U3+ Portable Hard Drive Enclosure

Specifications

Model No. Neutrino U3+
Part No. SK2-BU3OS-AKT
Certifications
  • CE
  • FCC
Case material
  • High quality aluminum for optimized heat dissipation
Application
  • 2.5" SATA-I or SATA-II hard drive (1.5Gb/s or 3.0Gb/s)
  • Capacity 20GB - 1TB
  • Height 9.5mm or 12.5mm
RAID mode N/A
Interface/Ports
  • 1x Mini USB 3.0 SuperSpeed port (backwards compatible with USB 2.0)
  • 2x 9-pin FireWire 800 ports
Data transfer
  • FireWire 800 (1394b) up to 800Mbps (100MB/s)
  • FireWire 400 (1394a) up to 400Mbps (50MB/s)
  • USB 3.0 up to 5Gbps (625MB/s)
  • USB 2.0 up to 480Mbps (60MB/s)
System requirements (PC)
  • FireWire 400/800: Windows XP/Vista/7
  • USB 2.0/3.0: Windows XP/Vista/7
  • Your hardware device must have the correct corresponding port (e.g. USB 3.0, USB 2.0 or PCI card)
System requirements (Mac)
  • FireWire 400/800: Mac OS 10.2 or above
  • USB 2.0: Mac OS 10.2 or above
  • Your hardware device must have the correct corresponding port (e.g. USB 2.0 or PCI card)
System environment
  • Operating Temperature: 5°C ~ 40°C
  • Operating Humidity: 20%RH ~ 80%RH
  • Storage Temperature: -20°C ~ 70°C
  • Storage Humidity: 10%RH ~ 90%RH
Power supply
  • Bus Power 5V/900mA (host computer has to provide sufficient USB bus power)
  • Power supply (DC +5.2V/2A)
Dimensions (LxWxH)
  • 4.9 inches x 3.1 inches x 0.9 inches
  • 12.5cm x 7.8cm x 2.4cm
Package contents
  • Neutrino enclosure (HDD not included)
  • USB 3.0 cable
  • FireWire 800 cable
  • Power adapter
  • User manual
Carton/Packing
  • Retail Box Size: 8.9 x 6.2 x 1.6 in. (22.7 x 15.7 x 4 cm)
  • Carton Size (20pcs per carton): 17.7 x 13.1 x 10.2 in. (45 x 33.4 x 26 cm)
Remarks
  • PCI card with corresponding USB 3.0 driver required for use with Mac.
