Neutrino Bridge

As of May 8, 2019, the Neutrino Bridge has been discontinued and this model is no longer being manufactured, sold or maintained.

The Neutrino Bridge was an adapter designed to hold a single 2.5" SATA drive. It was both a 2.5" to 3.5" SATA drive adapter with a regular internal SATA interface as well as a next generation USB 3.1 Gen 2 (10G) drive when connected externally over USB.

The closest alternative for this model is the Newer Technology AdaptaDrive.








Neutrino Bridge

The Neutrino Bridge is a two in one product designed to hold a single 2.5" drive. It is both a 2.5" to 3.5" drive adapter with a regular internal SATA interface as well as a next generation USB 3.1 Gen 2 (10G) drive when connected externally. Quickly and easily accessing the data on an SSD has never been easier and faster than with this dual interface drive adapter.

Features

  • USB 3.1 Gen 2 interface with transfer speeds up to 10 Gbps
  • Dual-interface with USB 3.1 and SATA connectivity
  • Supports Universal Attached SCSI Protocol (UASP)
  • Backwards compatible with USB 3.0 and USB 2.0 devices
  • Supports SATA-III drives for increased transfer rates
  • Fully bus powered (can be used without power adapter)
  • LED activity indication for USB interface
  • High quality all aluminum frame

Images

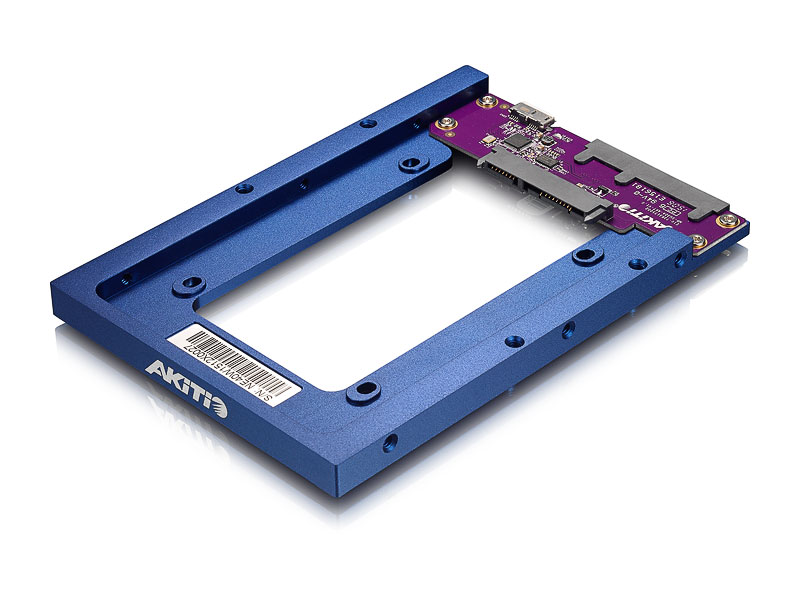

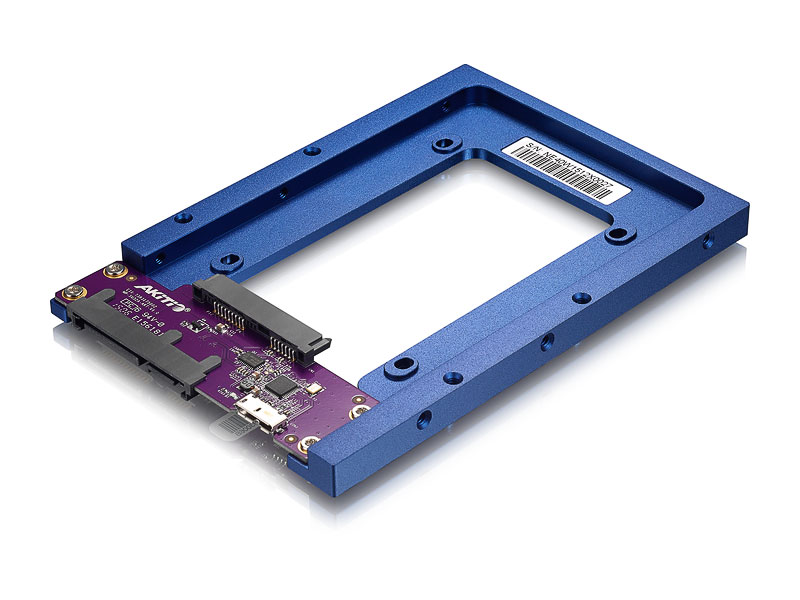

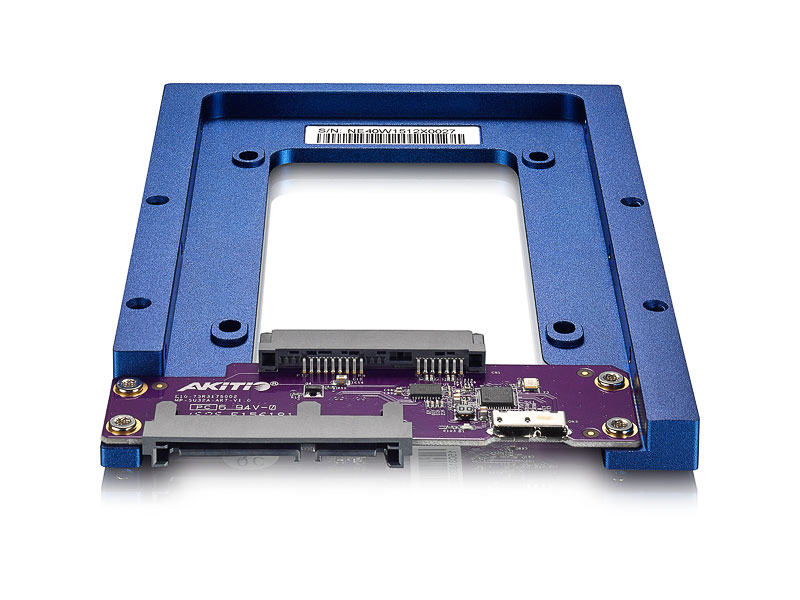

akitio neutrino bridge anglefront akitio neutrino bridge angleback akitio neutrino bridge back

Resources

Specifications

Model Neutrino Bridge
Part No.
  • NEUB-U3AB-AKT
Certifications N/A
Warranty
  • 2-year limited warranty
Case material
  • All aluminum frame
Application
  • 2.5" SATA 6Gb/s SSD or HDD
  • Height 7mm - 15mm
Interface/Ports
  • 1x Micro-B USB 3.1 SuperSpeed port (backwards compatible with USB 3.0 and 2.0)
  • 1x SATA 7+15 pin connector
Data transfer
  • USB 3.1 up to 10Gbps (1250MB/s)
  • USB 3.0 up to 5Gbps (625MB/s)
  • SATA-III up to 6Gbps (750MB/s)
System requirements (PC)
  • USB 3.1: Windows 7 or above
  • USB 3.0: Windows XP or above
  • Computer with USB 3.1 or USB 3.0 connector
System requirements (Mac)
  • USB 3.1: Mac OS 10.10.2 or above
  • USB 3.0: Mac OS 10.7 or above
  • Computer with USB 3.1 or USB 3.0 connector
System environment
  • Operating Temperature: 5°C ~ 35°C
  • Storage Temperature: -20°C ~ 60°C
  • Relative Humidity: 5% ~ 95% (non-condensing)
Power supply
  • USB: Bus Power 5V/900mA (host computer has to provide sufficient USB bus power)
  • SATA: Requires SATA power cable
Dimensions (LxWxH)
  • 5.79 inches x 4 inches x 0.39 inches
  • 14.7cm x 10.2cm x 1cm
Package contents
  • Neutrino Bridge
  • Setup guide
Carton/Packing
  • Retail Box Size: 8.4 x 6.2 x 1.4 in. (21.4 x 15.8 x 3.6 cm)
  • Carton Size (40pcs per carton): 18.3 x 15.6 x 14.1 in. (46.5 x 39.5 x 35.8 cm)
  • Gross Weight: 0.23 kg (retail box)
Remarks
  • To achieve the best possible transfer rates, make sure that the host computer also supports USB 3.1 (10G).
  • Any regular USB 3.0 cable with a Micro-B plug can be used but for maximum performance we recommend using a short cable under 50cm.
