T3-2DP

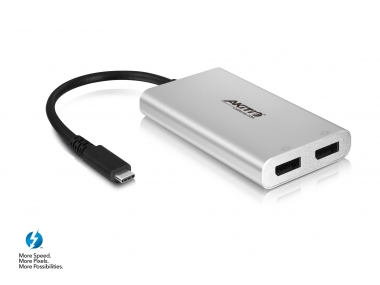

akitio-t3-2dp-angle-thumb

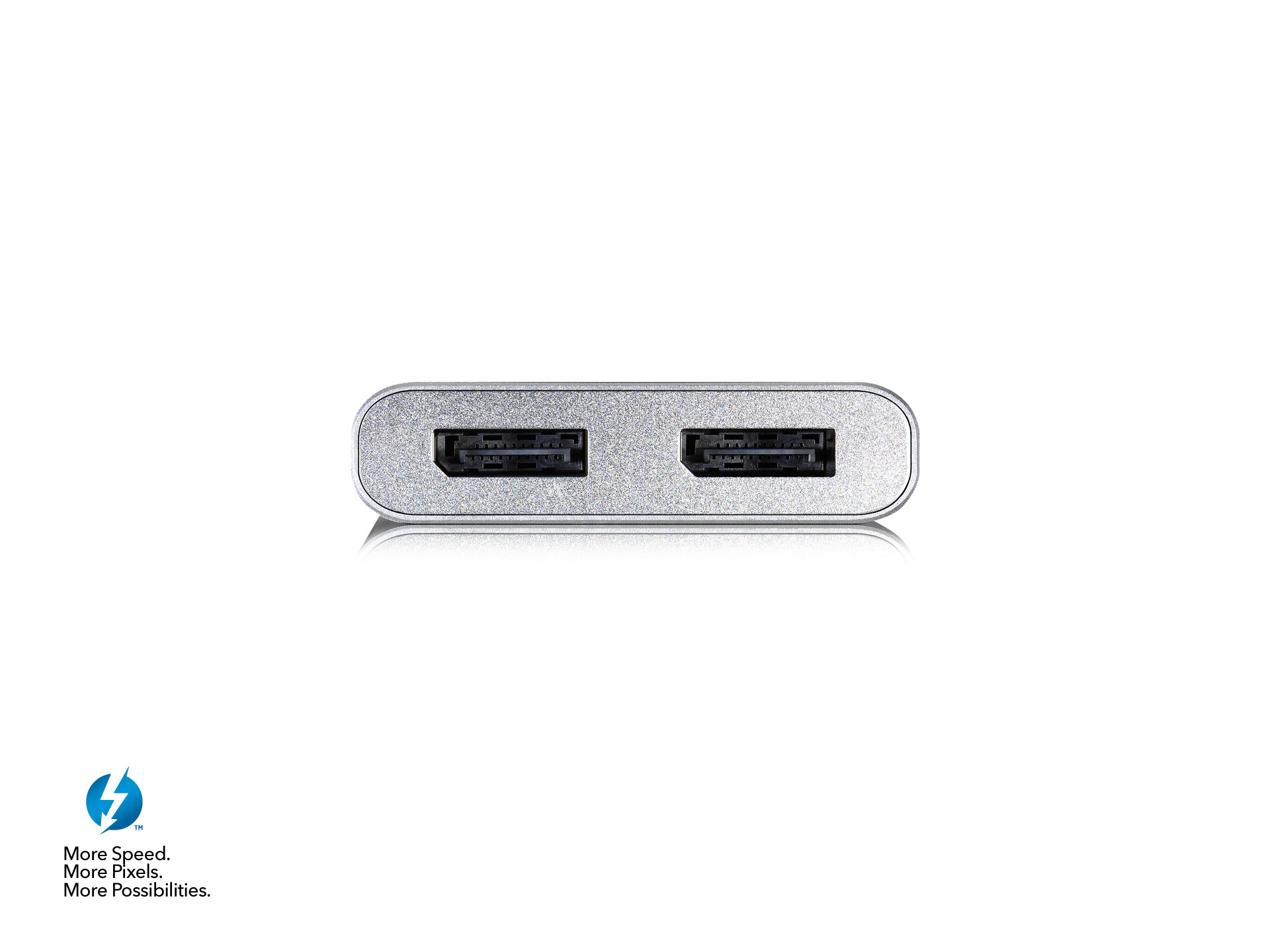

akitio-t3-2dp-angle-thumb T3-2DP back T3-2DP size T3-2DP 4K monitors
EOL

Thunderbolt 3
Bus powered
Icon for built-in Thunderbolt 3 cable
DisplayPort Output
thunderbolt-learn-more-button




T3-2DP

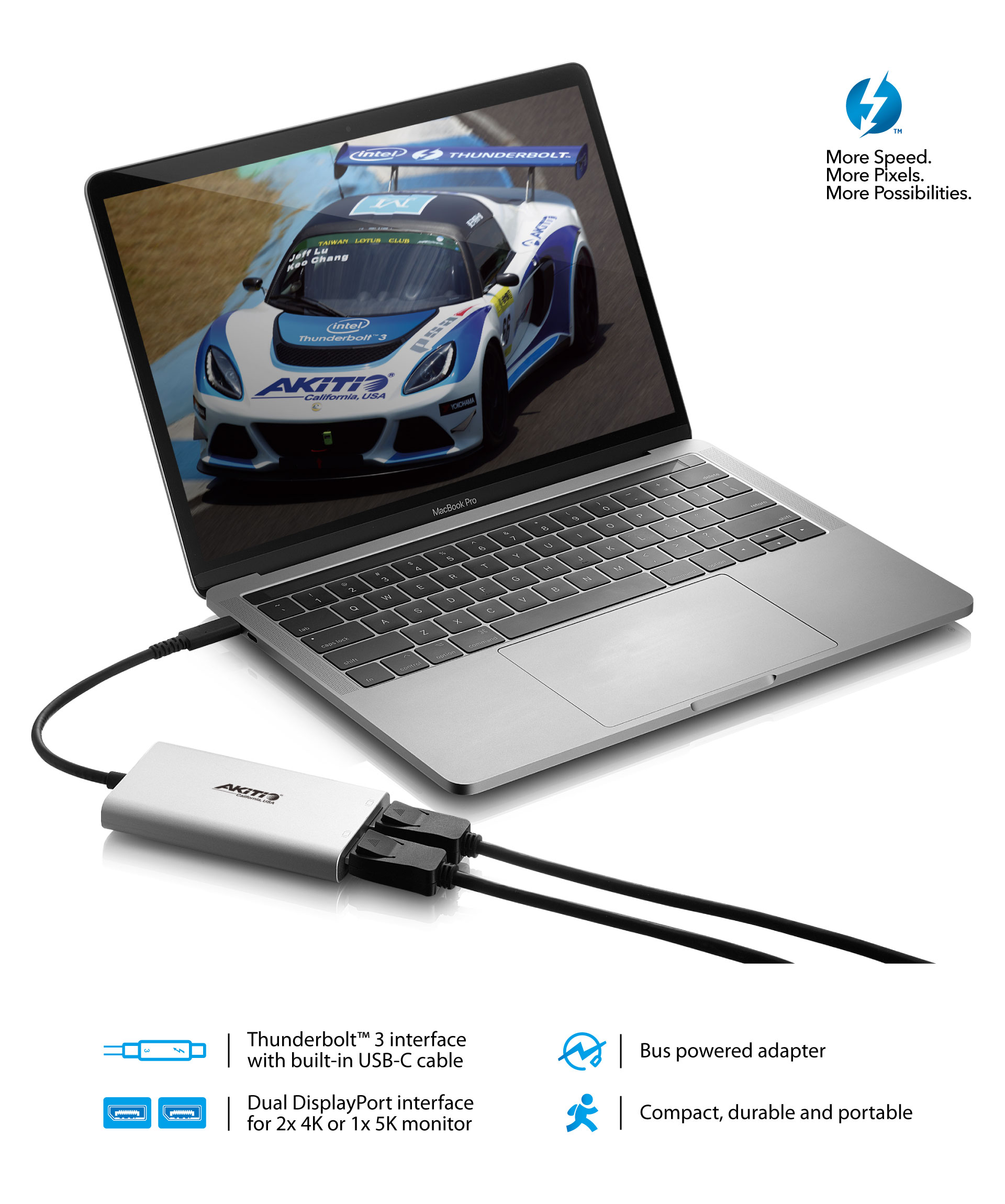

akitio t3 2dp features

The T3-2DP connects up to two 4K monitors or a single 5K monitor with a DisplayPort interface to a Thunderbolt™ 3 capable computer. This bus powered adapter comes with a built-in Thunderbolt 3 (USB-C) cable.

Features
  • Connects up to two 4K monnitors to a Thunderbolt 3 computer
  • Built-in Thunderbolt 3 cable for connection to computer
  • Supports 2x 4K @ 60Hz or 1x 5K @ 60Hz resolutions
  • Bus powered, durable and portable

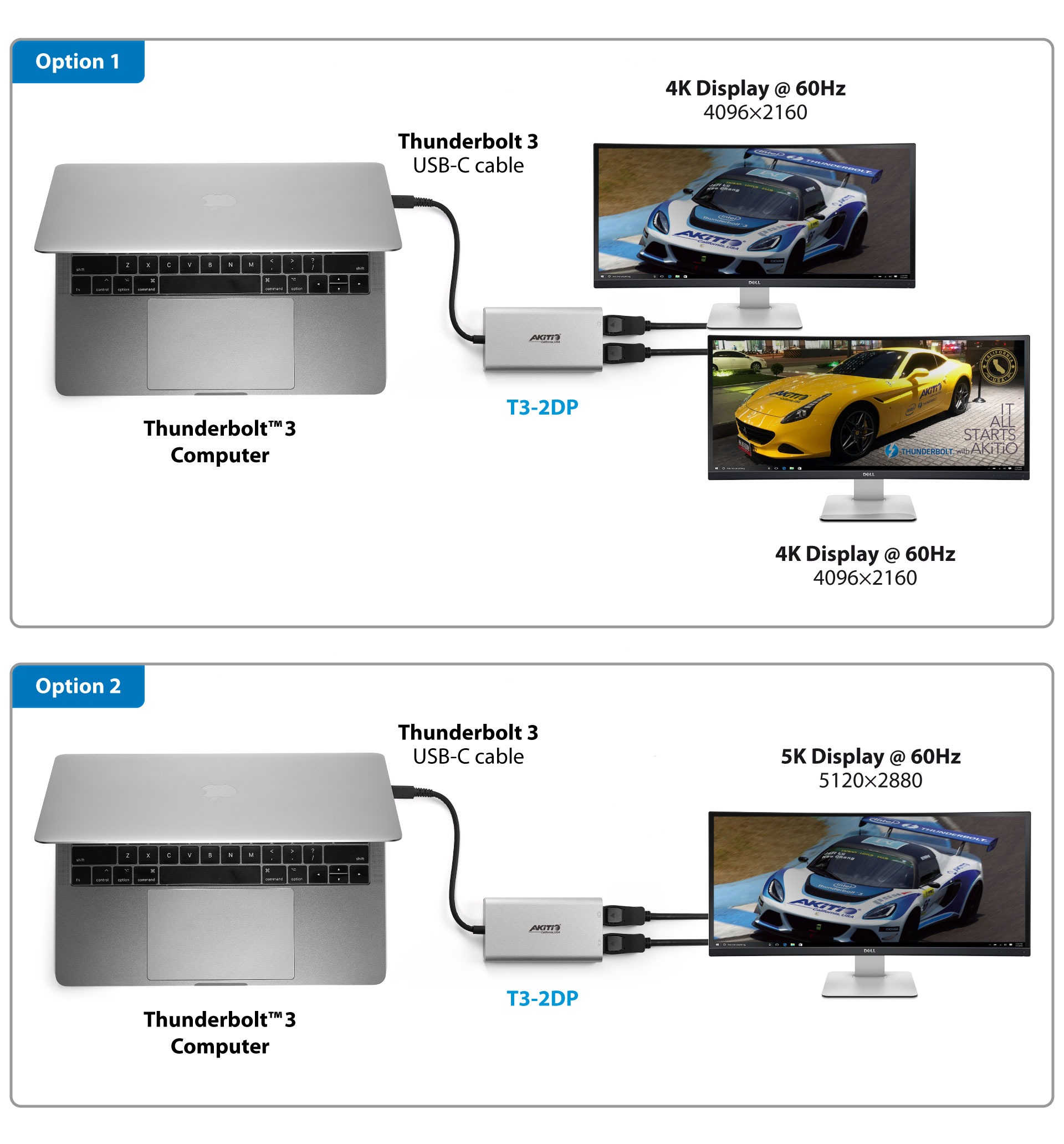

Dual DisplayPort Connectivity

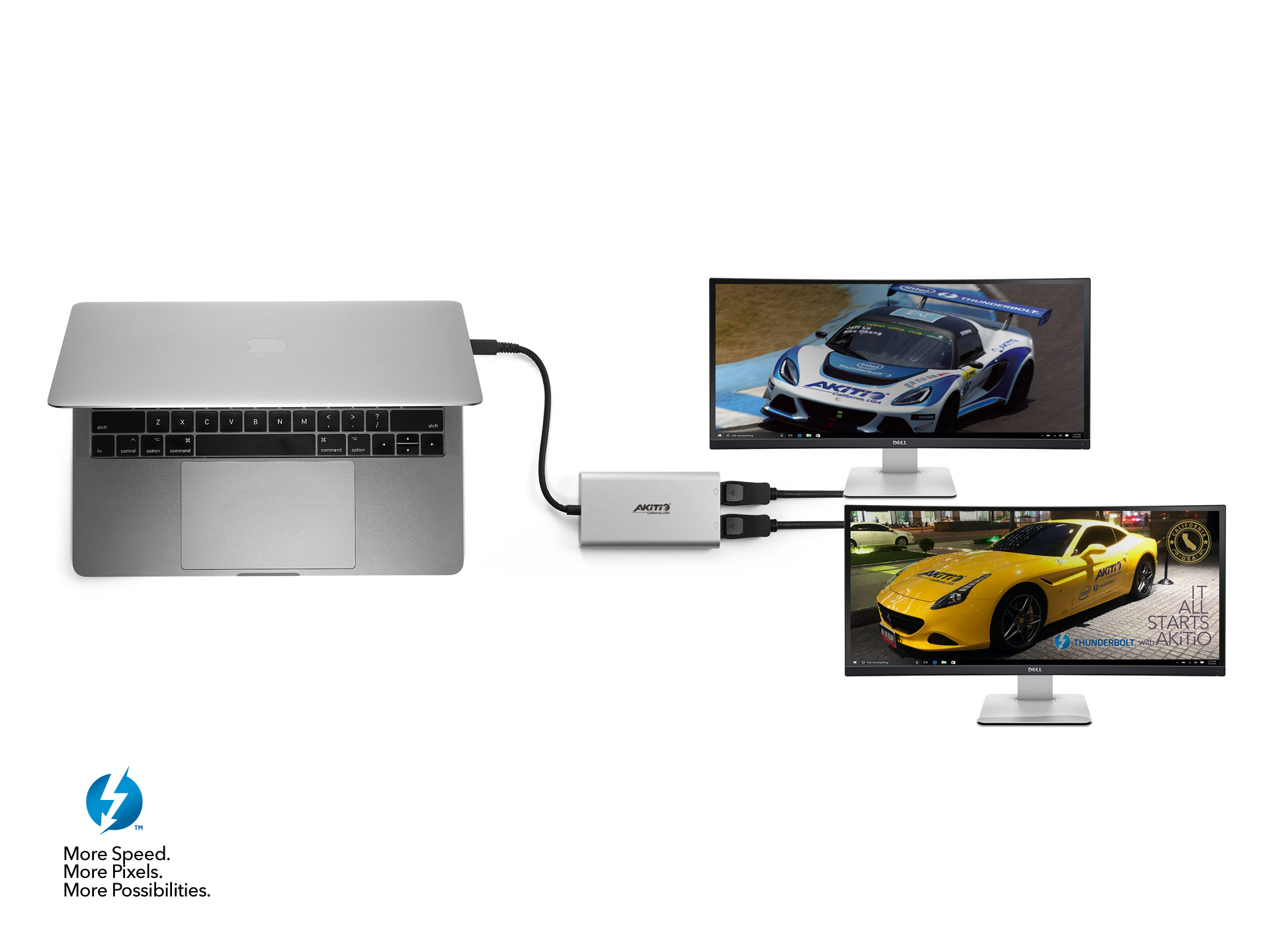

akitio t3 2dp monitors

Thunderbolt 3

Extend your desktop and increase your workspace by connecting up to two 4K monitors at 60Hz or one 5K monitor at 60Hz to your Thunderbolt 3 computer.

Designed for Portability

This compact and durable adapter runs on bus power alone. Hassle-free with its built-in Thunderbolt 3 (USB-C) cable, this is the ideal companion for your notebook when you need to connect external DisplayPort monitors.

T3-2DP

  • TB32DP00-001


  • CE

  • FCC

  • Thunderbolt


  • 2-year limited warranty


  • High quality aluminum for optimized heat dissipation


  • 1x built-in Thunderbolt 3 cable (~20cm)

  • 2x DisplayPort 1.2 connectors


  • Thunderbolt 3 up to 40 Gbps

  • DisplayPort 1.2 (2x 4K at 60 Hz)


  • Windows 10 (64-bit)

  • Computer with Thunderbolt™ 3 port


  • macOS 10.12 and later

  • Computer with Thunderbolt™ 3 port


  • Operating Temperature: 5°C ~ 35°C

  • Storage Temperature: -20°C ~ 60°C

  • Relative Humidity: 5% ~ 95% (non-condensing)

N/A (bus powered)

  • 4.25 inches x 2.36 inches x 0.59 inches (plus 7.87 inches for cable length)

  • 10.8cm x 6cm x 1.5cm (plus 20cm for cable length)


  • T3-2DP adapter with built-in Thunderbolt 3 cable (~20cm)

  • Setup guide


  • Retail Box Size: 8.4 x 6.2 x 1.4 in. (21.4 x 15.8 x 3.6 cm)

  • Carton Size (15pcs per carton): 14.57 x 10.24 x 13 in. (37 x 26 x 33 cm)

  • Gross Weight: 0.24 kg (retail box), 12 kg (carton)


  • Not all Thunderbolt 3 computers support two 4K displays or one 5K display over Thunderbolt, in which case only one 4K display can be used. For more information, please contact the manufacturer of your computer.

  • The DisplayPort outputs can be converted to HDMI, DVI or VGA but only with an active adapter (sold separately). Passive adapters are not compatible.



IMPORTANT

Your PC may need updates for the Thunderbolt 3 ports to function properly.
For more information go to https://thunderbolttechnology.net/updates.
