Active DisplayPort to HDMI Adapter

dp-to-hdmi-adapter-cable-thumb
dp-to-hdmi-adapter-cable-thumb DP to HDMI Adapter bag DP to HDMI Adapter with Akitio product DP to HDMI Adapter with monitor
EOL

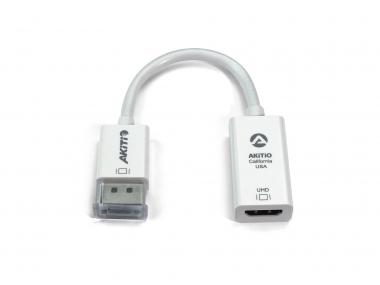

Active DisplayPort 1.2 (Male) to HDMI 2.0 (Female) Adapter Cable

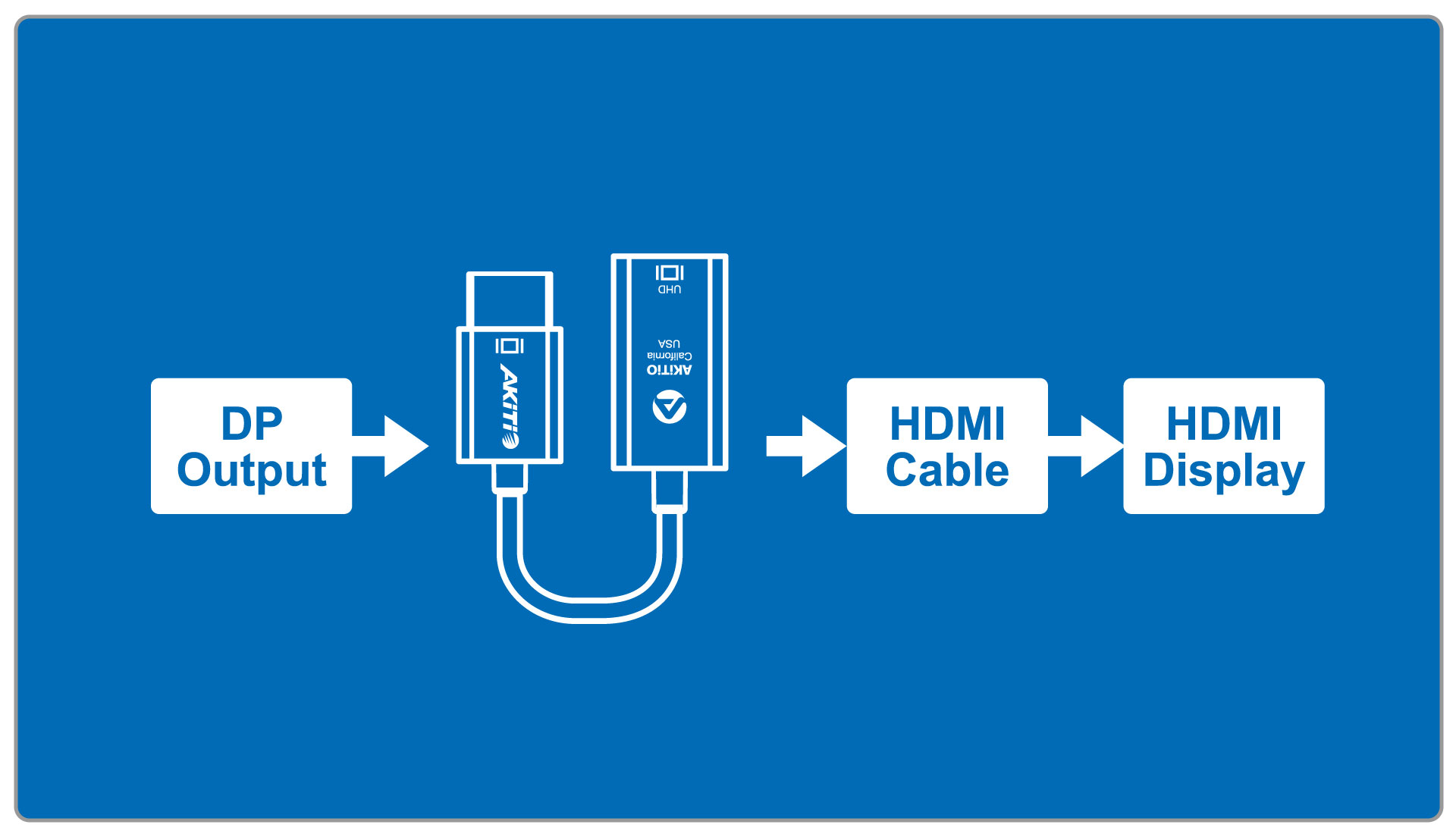

dp to hdmi adapter connectivity

The active DisplayPort 1.2 to HDMI adapter cable connects a DisplayPort (DP) equipped system to an HDMI enabled display or projector.

Features
  • Supports HDMI resolutions up to 4K x 2K at 60 Hz (18 Gbps HDMI bandwidth)
  • Active adapter requires a DisplayPort (DP) equipped system (DP++ not supported)
  • Compliant with DP 1.2 specifications and downwards compatible with lower versions
  • Supports HDCP content protection

Compatible with Akitio's Thunderbolt 3 Products

dp to hdmi adapter akitio

Active DisplayPort to HDMI adapter

This adapter cable is compatible with Akitio's Thunderbolt 3 storage solutions designed for macOS and Windows that come with a built-in DisplayPort such as the Thunder3 Quad X, the Node Pro, the Node Lite and many more in our Thunderbolt 3 series.

Designed for DisplayPort (DP) Equipped Systems

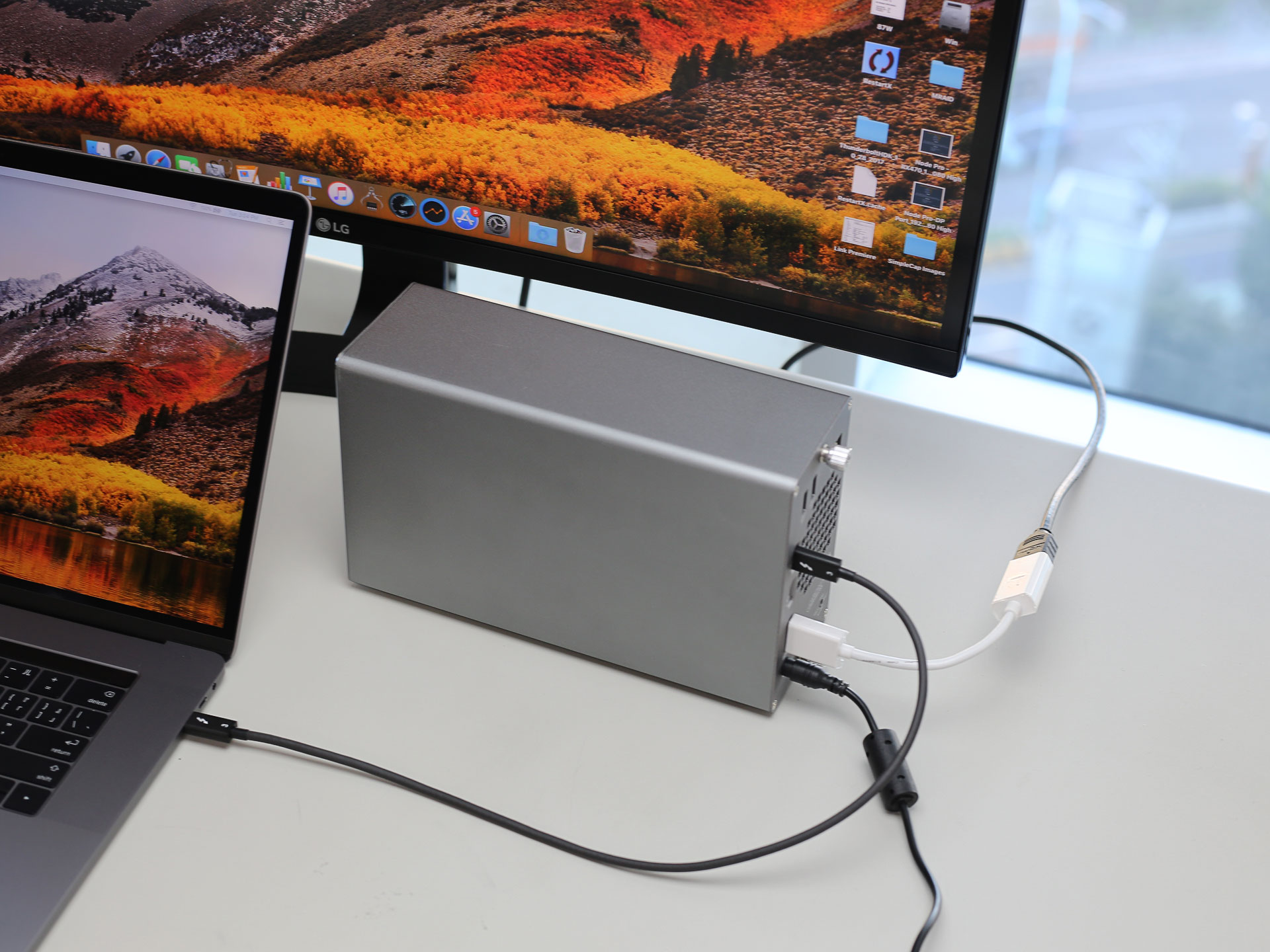

dp to hdmi adapter monitor

DisplayPort (DP) to HDMI

The DisplayPort to HDMI adapter is designed for computers and systems with a DisplayPort (DP) output, allowing you to connect an HDMI monitor to your system. It does not support DP++ and it cannot be used with DisplayPort monitors.

Active DisplayPort to HDMI Adapter

  • DPHDMICB-001


  • CE

  • FCC


  • 2-year limited warranty


  • DisplayPort 1.2 (backwards compatible)


  • HDMI 2.0 with 4K resolution at 60 Hz (18 Gbps bandwidth)


  • Cable length: 7 inches (178 mm)


  • Active DisplayPort to HDMI adapter cable

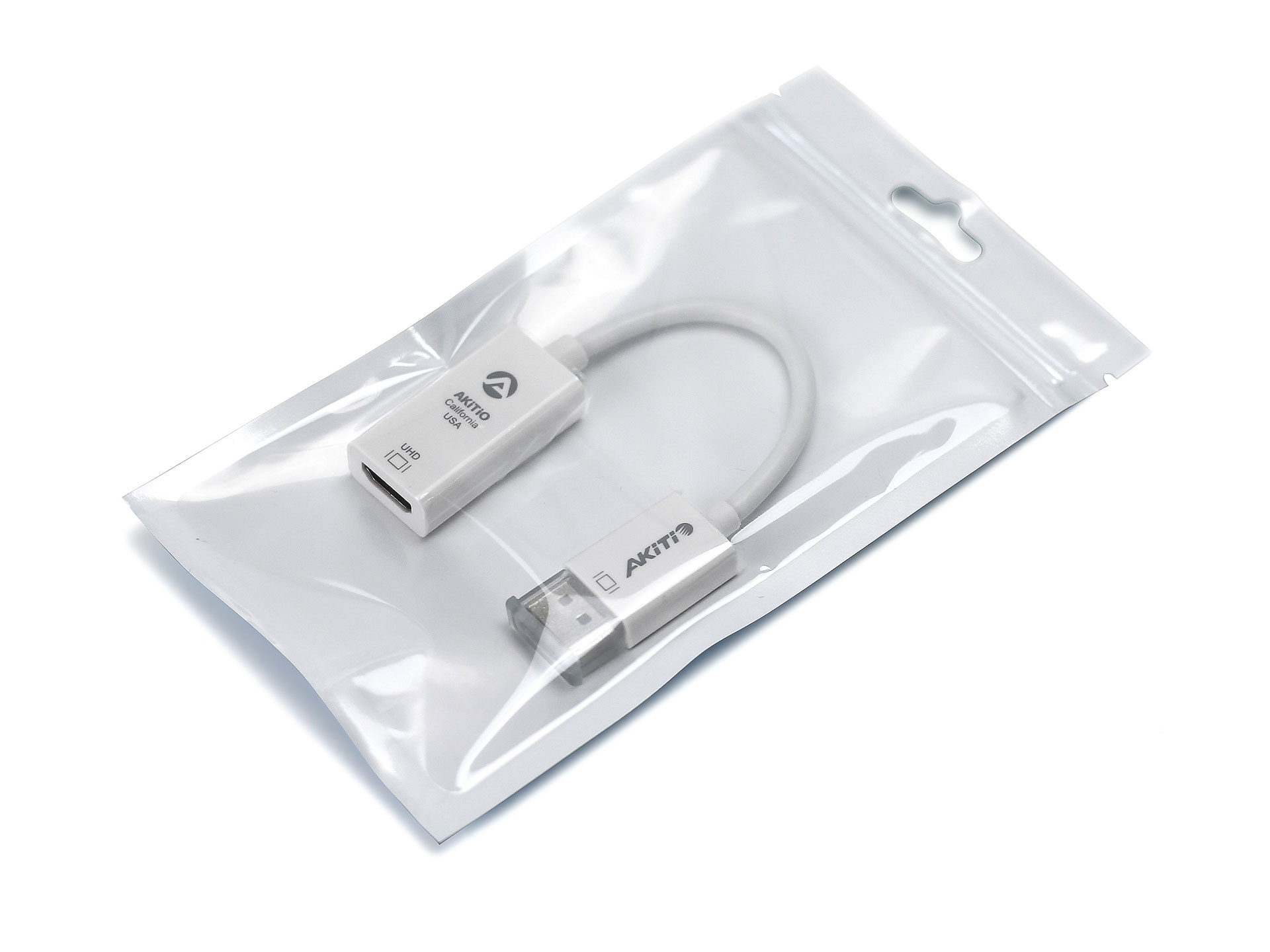

  • Retail Bag Size: 7.1 x 3.9 x 0.4 in. (18 x 10 x 1 cm)

  • Carton Size (400pcs per carton): 18.9 x 15.4 x 10 in. (48 x 39.1 x 25.5 cm)


  • This adapter has to be connected a DisplayPort equipped system (DP++ not supported). It does not work the other way around when plugged into a DisplayPort monitor.



Compatible with following Akitio's Thunderbolt 3 products:

  • Node Duo
  • Node Lite
  • Node Lite with Intel Optane SSD
  • Node Pro
  • T3-2DP
  • Thunder3 RAID Station
  • Thunde3 Quad X
  • Thunder3 Quad Mini
  • Thunder3 Dock Pro
