T3-10G Discontinued

Details
T3-10G

As of March 18, 2021, the AKiTiO T3-10G Network Adapter has been discontinued and this model is no longer being manufactured, sold or maintained.

The T3-10G was a bus-powered Thunderbolt 3 to 10G Ethernet adapter. It was designed for Thunderbolt 3 capable notebooks like the MacBook Pro (late 2016) and professional workstations that require reliable, accelerated access to external storage and networks for I/O demanding applications.

As a replacement, we recommend the OWC Thunderbolt 3 10G Ethernet Adapter.





T3-10G

The T3-10G network adapter offers a portable, bus powered, fanless and low-cost 10GbE solution enabling 10GBase-T and NBASE-T (IEEE 802.3bz-2016) connectivity for Apple® OS X® and Microsoft® Windows® environments over Thunderbolt™. This network adapter is ideal for Thunderbolt 3 capable notebooks like the MacBook Pro (late 2016) and professional workstations that require reliable, accelerated access to external storage and networks for I/O demanding applications.

Features

  • Thunderbolt 3 interface with reversible USB-C connector
  • Ethernet port supports auto-negotiation for 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s and 100Mb/s Base-T
  • Jumbo frame (16K) and Wake-on-LAN (WoL) support
  • Large gaps for air flow and heatsink for passive cooling
  • Bus powered 10GbE network adapter
  • Durable, compact and portable
  • Protective rubber sleeve

Images

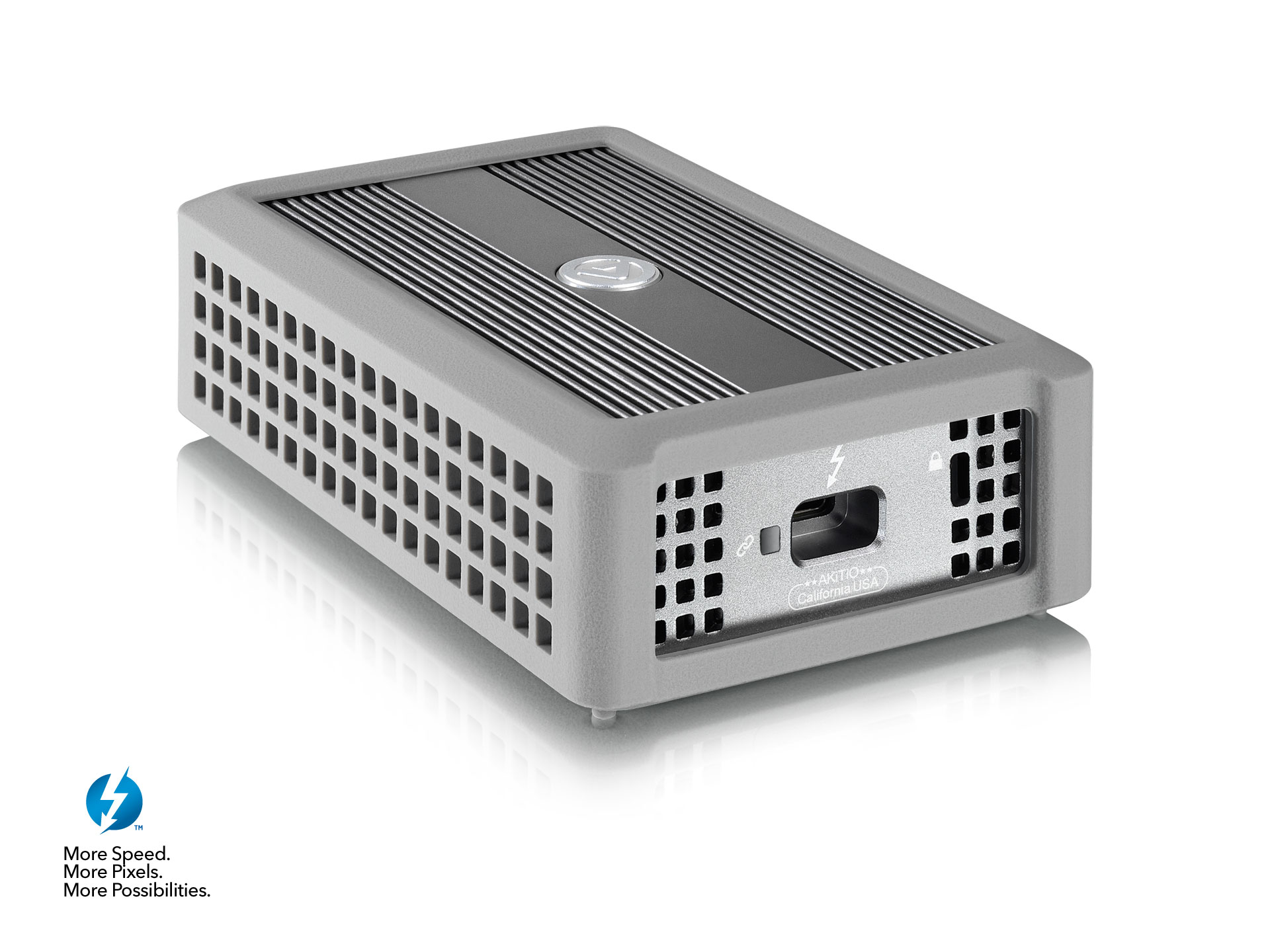

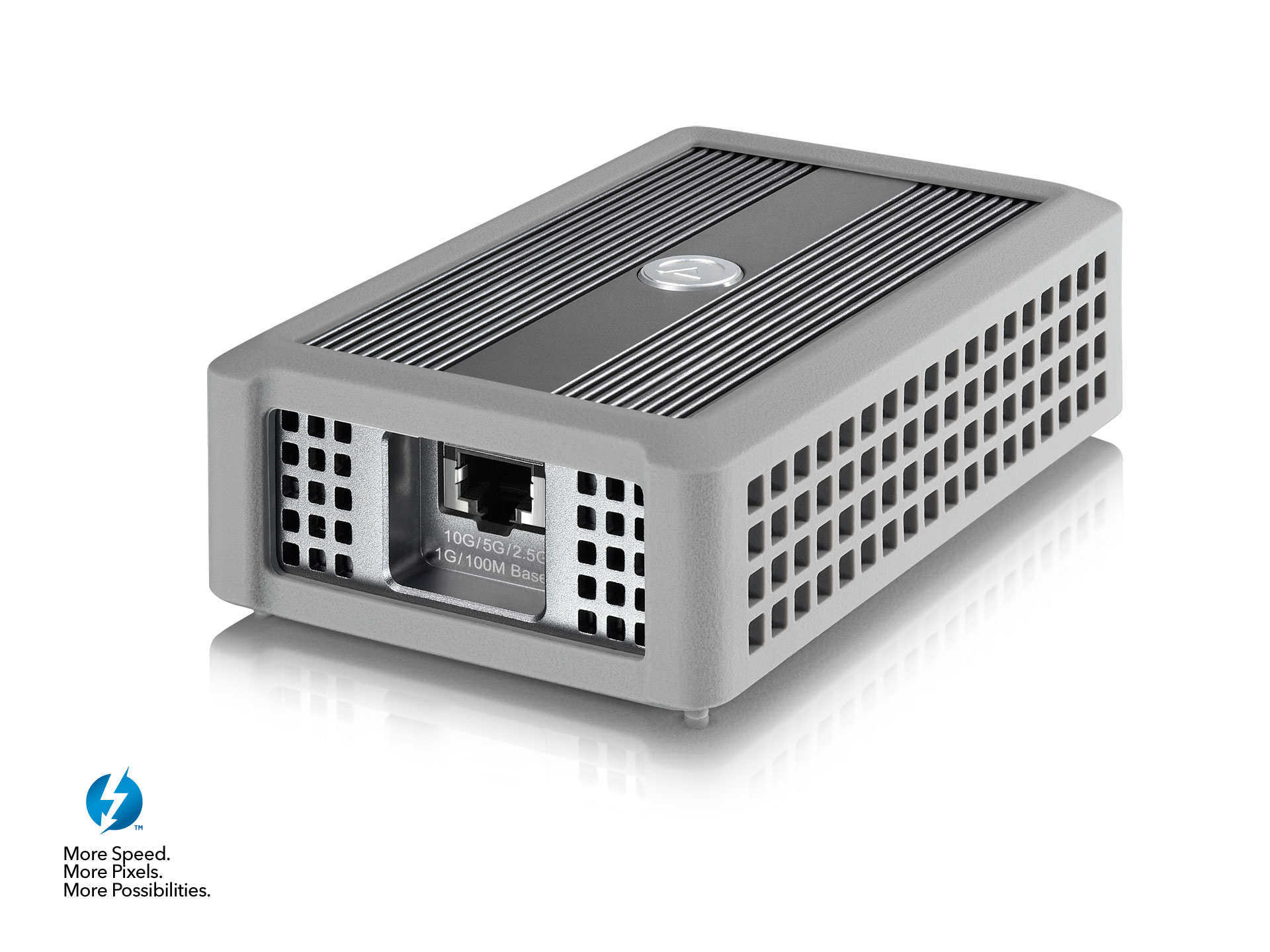

akitio t3 10g angle akitio t3 10g angleback

Resources

Specifications

Model T3-10G
Part No.
  • T3TGAA0008Y000
Certifications
  • CE
  • FCC
  • VCCI
  • RCM
  • BSMI
  • Thunderbolt
Warranty
  • 2-year limited warranty
Case material
  • High quality aluminum for optimized heat dissipation
Interface/Ports
  • 1 x Thunderbolt™ 3 (USB-C) port
  • 1 x RJ45 Ethernet port compatible with 10G/5G/2.5G/1G/100M Base-T
Data transfer
  • Thunderbolt 3 up to 40Gbps
  • Ethernet port supports auto-negotiation for 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s and 100Mb/s
System requirements (PC)
  • Windows 7 (64-bit), Windows 10 (64-bit)
  • Computer with Thunderbolt™ 3 port
  • 10G Ethernet driver must be installed for the device to function properly
System requirements (Mac)
  • macOS 10.13.6 and later
  • Computer with Thunderbolt™ 3 port
System environment
  • Operating Temperature: 5°C ~ 35°C
  • Storage Temperature: -20°C ~ 60°C
  • Relative Humidity: 5% ~ 95% (non-condensing)
Power supply N/A (bus powered)
Dimensions (LxWxH)
  • 4.96 inches x 3.15 inches x 1.46 inches
  • 12.6cm x 8cm x 3.7cm
Package contents
  • T3-10G
  • Thunderbolt 3 cable (70cm)
  • Setup guide
Carton/Packing
  • Retail Box Size: 6.3 x 5 x 1.9 in. (16.1 x 12.6 x 4.8 cm)
  • Carton Size (20pcs per carton): 21.4 x 10.9 x 7.4 in. (54.3 x 27.7 x 18.7 cm)
  • Gross Weight: 0.6 kg (retail box), 12.66 kg (carton)
Remarks
  • This Thunderbolt product is not compatible with Apple's Boot Camp.
  • High quality Cat-6A Ethernet cable is recommended for distances up to 100m. At shorter cable length, it's possible to use cables of lower grade (e.g. Cat-6 for 10G or Cat-5e for 5G up to 55m).
  • To use this bus-powered device on older Thunderbolt and Thunderbolt 2 computers, it has to be connected to the second Thunderbolt 3 port on another self-powered Thunderbolt 3 device. If connected directly to the Thunderbolt 3 to Thunderbolt 2 adapter, bus-power is insufficient. A possible setup might look like this: TB2 Mac with macOS 10.13.4 or above > TB3 to TB2 adapter from Apple > self-powered TB3 device with two TB3 ports > TB3 10G adapter.
  • This product has components or design elements that are patented or patent pending.
