Taurus Super-S LCM

As of June 1, 2015, the Taurus Super-S LCM has been discontinued and this model is no longer being manufactured, sold or maintained.

The Taurus Super-S LCM was a 2-bay storage enclosure with built-in hardware RAID designed for two 3.5" hard disk drives. It featured a 4-in-1 interface with eSATA, FireWire 800, FireWire 400 and USB 2.0.

The replacement for this model is the Taurus Super-S3 LCM. It's identical with the old model except that the USB interface is now USB 3.0 instead of USB 2.0.








Taurus Super-S LCM

When it comes to raw power there is nothing that beats the dual-bay Taurus. This multi-bay hard drive enclosure is built strong and rugged, offering more than enough capacity to store all your digital media files. Not only that, but the Taurus can also back up and secure all of your data thanks to RAID protection. Great performance, great protection and great looks - only in the Taurus.

Features

  • Configurable hardware RAID controller (RAID 1 mirroring and RAID 0 striping)
  • LCD display for easy device configuration and access to detailed information about the drives
  • Critical parameters such as HDD temperature and fan speed can be monitored easily with help of the LCD display
  • Utilizes Self-Monitoring, Analysis and Reporting Technology also known as S.M.A.R.T. to obtain data directly from the HDD
  • Versatile interface, including eSATA, FireWire 400, FireWire 800 and USB 2.0
  • Hardware acceleration of RAID rebuild
  • 2TB volume option for systems that do not support large volumes
  • Perforated aluminum casing and extra large fan for excellent heat dissipation
  • Smart Fan (automatically regulates fan speed according to the internal temperature)

Images

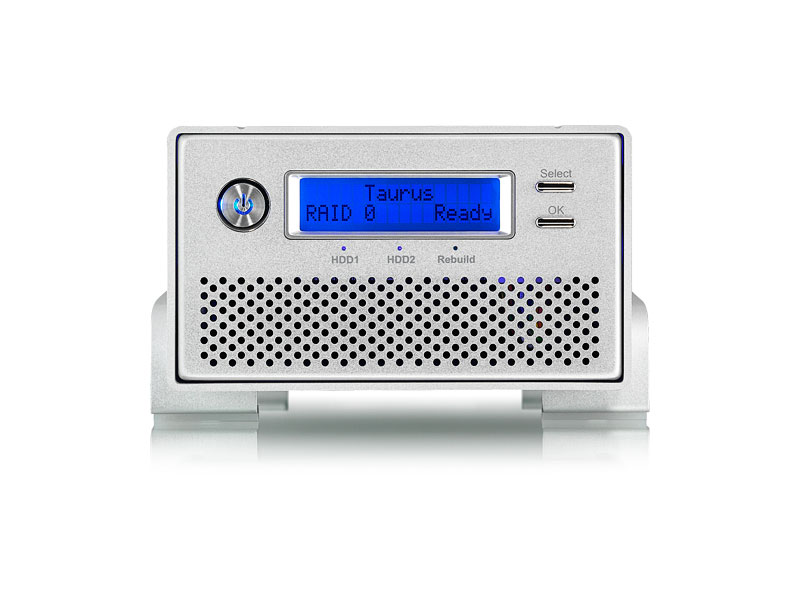

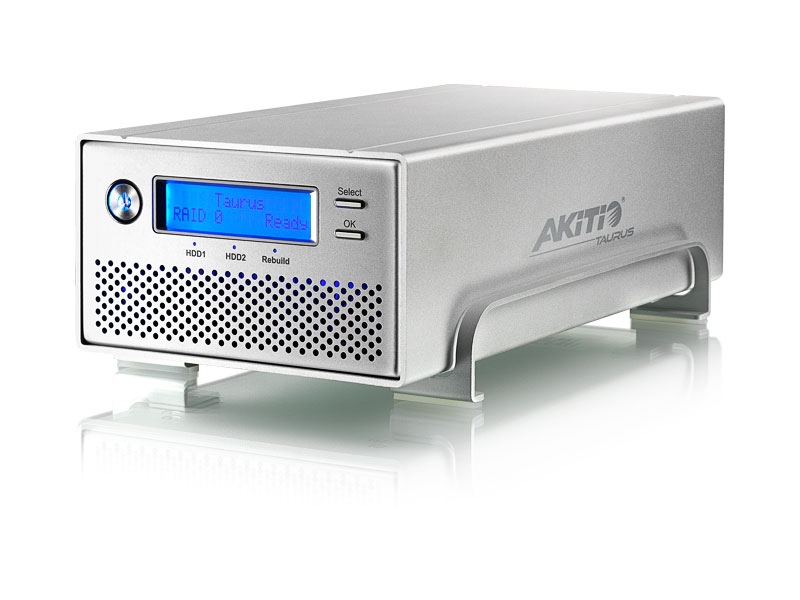

akitio taurus superslcm angle akitio taurus superslcm front akitio taurus superslcm rear

Resources

Specifications

Model No. Taurus Super-S LCM
Part No. PDD-MSABU2OS-AKT
Certifications
  • CE
  • FCC
Warranty
  • 2-year limited warranty
Case material
  • High quality aluminum for optimized heat dissipation
Application
  • Two 3.5" SATA-I, SATA-II or SATA-III hard drives
  • Capacity 80GB - 4TB per HDD
  • Two hard drives of identical capacity are recommended
RAID mode
  • RAID 0 striping
  • RAID 1 mirroring
Interface/Ports
  • 1x eSATA port
  • 2x 9-pin FireWire 800 ports
  • 1x 6-pin FireWire 400 port
  • 1x USB 2.0 High Speed port
Data transfer
  • eSATA up to 3Gbps (300MB/s)
  • FireWire 800 (1394b) up to 800Mbps (100MB/s)
  • FireWire 400 (1394a) up to 400Mbps (50MB/s)
  • USB 2.0 up to 480Mbps (60MB/s)
System requirements (PC)
  • eSATA: Windows XP or above
  • FireWire 400/800: Windows XP or above
  • USB 2.0: Windows XP or above
  • Your hardware device must have the correct corresponding port (e.g. USB 2.0, FireWire 800 or PCI card)
  • eSATA Plug and Play support required for host card driver
System requirements (Mac)
  • eSATA: Mac OS 10.4 or above
  • FireWire 400/800: Mac OS 10.2 or above
  • USB 2.0: Mac OS 10.2 or above
  • Your hardware device must have the correct corresponding port (e.g. USB 2.0, FireWire 800 or PCI card)
  • eSATA Plug and Play support required for host card driver
System environment
  • Operating Temperature: 5°C ~ 35°C
  • Storage Temperature: -20°C ~ 60°C
  • Relative Humidity: 5% ~ 95% (non-condensing)
Power supply
  • External power supply (UL, cUL, CE, TUV approved)
  • Input: AC 100-240V
  • Output: DC +5V/4.2A, +12V/3A
Fan noise level
  • 21.5 dB(A)
Dimensions (LxWxH)
  • 9.6 inches x 5.5 inches x 3.3 inches
  • 24.5cm x 14cm x 8.3cm
Package contents
  • Taurus enclosure (HDD not included)
  • eSATA cable
  • USB 2.0 cable
  • FireWire 400 cable
  • FireWire 800 cable
  • Power adapter
  • User manual
Carton/Packing
  • Retail Box Size: 13.6 x 9.2 x 5.2 in. (34.5 x 23.3 x 13.3 cm)
  • Carton Size (6pcs per carton): 19.1 x 16.3 x 14.8 in. (48.5 x 41.5 x 37.5 cm)
Remarks
  • In order for the computer to access volumes larger than 2TB, both the hardware and Operating System need to support large volumes (e.g.: Windows Vista, Windows 7 or Mac OS 10.4 and above).
  • The Taurus Super-S Combo is not designed for one drive alone and only works when two hard drives are installed.
