AKiTiO Thunder2 Duo Pro

As of April 24, 2018, the AKiTiO Thunder2 Duo Pro has been discontinued and this model is no longer being manufactured, sold or maintained.

The AKiTiO Thunder2 Duo Pro was a RAID storage enclosure with HDMI video output and a dual Thunderbolt 2 and USB 3.0 interface. It could house two 2.5" or 3.5" SATA drives.

This model has been replaced by the Thunder3 RAID Station, which is using a Thunderbolt 3 interface and offers several additional features of a docking station.








AKiTiO Thunder2 Duo Pro

This dual bay storage enclosure with HDMI video output was built for professionals that demand not only lightning fast transfer speeds but also extreme flexibility. The dual interface with Thunderbolt 2 and USB 3.0 guarantees compatibility with all systems and the user configurable hardware RAID controller provides either maximum speed, large storage capacity or peace of mind with data redundancy. Installation and replacement of the 2.5-inch and 3.5-inch drives is made extra easy with the unique tool-less design.

Features

  • Thunderbolt 2 for lighting fast transfer speeds up to 20Gbps
  • Dual interfaces featuring Thunderbolt and USB 3.0 connectivity
  • Hardware RAID controller (RAID 0, RAID 1, SPAN, Non-RAID)
  • Tool-less drive installation for 2.5-inch and 3.5-inch drives
  • Built-in fan for active cooling with power switch
  • Dedicated HDMI 1.4b port for 4K displays
  • Kensington security lock slot

Images

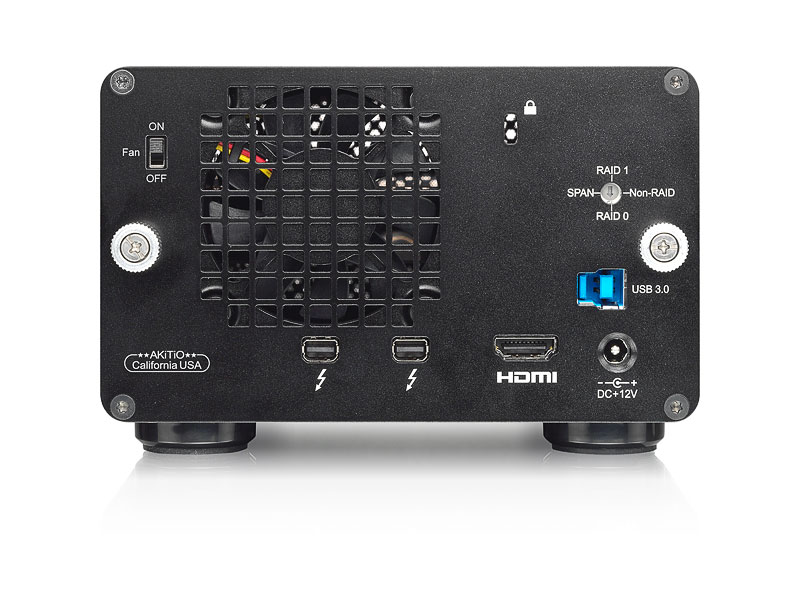

akitio thunder2 duo pro angle  akitio thunder2 duo pro front  akitio thunder2 duo pro back

Resources

Specifications

Model AKiTiO Thunder2 Duo Pro
Part No.
  • T2DP-THU3IAA-AKTU
Certifications
  • CE
  • FCC
  • VCCI
  • Thunderbolt
Warranty
  • 2-year limited warranty
Case material
  • High quality aluminum for optimized heat dissipation
Application
  • Up to two 2.5" or 3.5" SATA-I, SATA-II or SATA-III drives
  • Capacity 80GB - 12TB per drive
  • Two hard drives of identical capacity are recommended
RAID mode
  • Non-RAID
  • SPAN
  • RAID 0 striping
  • RAID 1 mirroring
Interface/Ports
  • 2x Thunderbolt 2 ports
  • 1x USB 3.0 SuperSpeed port (backwards compatible with USB 2.0)
  • 1x HDMI port
Data transfer
  • Thunderbolt 2 up to 20Gbps
  • USB 3.0 up to 5Gbps
  • HDMI 1.4b interface up to 3.0 Gbps
System requirements (PC)
  • Windows 7, Windows 8, Windows 10
  • Computer with Thunderbolt™ or USB 3.0 connector
System requirements (Mac)
  • Mac OS X 10.9 or above
  • Computer with Thunderbolt™ or USB 3.0 connector
System environment
  • Operating Temperature: 5°C ~ 35°C
  • Storage Temperature: -20°C ~ 60°C
  • Relative Humidity: 5% ~ 95% (non-condensing)
Power supply
  • External power supply (UL, cUL, CE, TUV approved)
  • Input: AC 100-240V
  • Output: DC +12V/6A
Fan noise level
  • 14.5 dB(A) when fan is turned on
Dimensions (LxWxH)
  • 9.37 inches x 5.63 inches x 3.7 inches
  • 23.8cm x 14.3cm x 9.4cm
Package contents
  • AKiTiO Thunder2 Duo Pro
  • Thunderbolt cable (1m)
  • USB 3.0 cable (1m)
  • Power adapter
  • Setup guide
Carton/Packing
  • Retail Box Size: 13 x 10.1 x 4.8 in. (33.1 x 25.7 x 12.3 cm)
  • Carton Size (6pcs per carton): 20.8 x 15.4 x 13.9 in. (52.8 x 39 x 35.3 cm)
Remarks
  • This Thunderbolt product is not compatible with Apple's Boot Camp.
  • In order for the computer to access volumes larger than 2TB, both the hardware and Operating System need to support large volumes (e.g.: Windows Vista, Windows 7 or Mac OS 10.4 and above).
  • Thunderbolt cable not included with all models or in all regions.
  • This product has components or design elements that are patented or patent pending.
