AKiTiO Thunder3 Duo Pro

As of February 27, 2021, the AKiTiO Thunder3 Duo Pro has been discontinued and this model is no longer being manufactured, sold or maintained.

The AKiTiO Thunder3 Duo Pro was a dual-bay RAID storage enclosure with dual Thunderbolt™ 3 and USB interfaces. It could accommodate both 2.5-inch and 3.5-inch SATA drives.

The closest alternative is the OWC Gemini.








AKiTiO Thunder3 Duo Pro

This dual bay RAID storage enclosure can reach data transfer speeds of up to 785 MB per second while simultaneously providing two 4K video signal streams. For added convenience and flexibility, the AKiTiO Thunder3 Duo Pro can accommodate both 2.5-inch and 3.5-inch drives. It is completely "tool-less", so drives can be easily installed or uninstalled.

Features

  • Thunderbolt 3 for lightning fast transfer speeds up to 40 Gbps
  • Triple connectivity featuring Thunderbolt 3, USB 3.1 Gen 1 and DisplayPort
  • Second Thunderbolt 3 port supports Thunderbolt 3, USB 3.1 (10 Gbps), and DisplayPort devices
  • Hardware RAID controller (RAID 0, RAID 1, SPAN, Non-RAID)
  • Tool-less drive installation for 2.5-inch and 3.5-inch drives
  • Built-in fan for active cooling with power switch
  • Dedicated DisplayPort for additional 4K monitor
  • Kensington security lock slot

Images

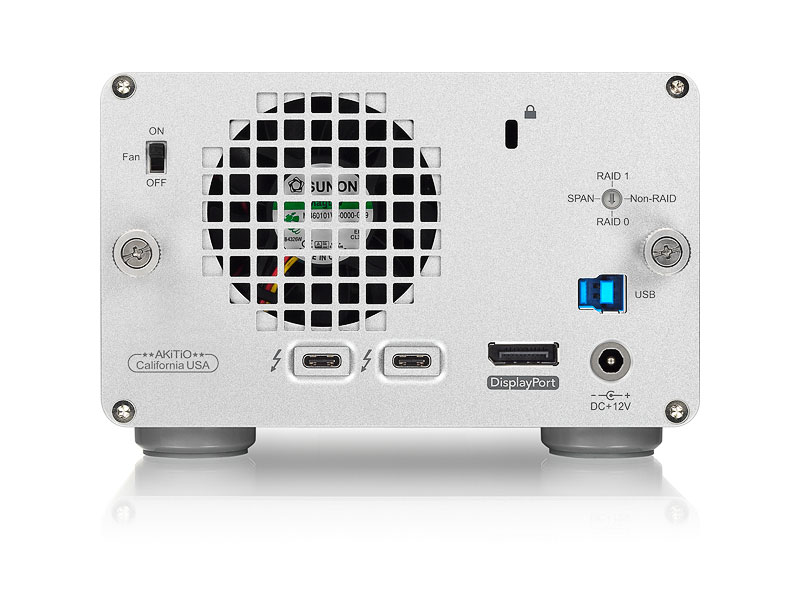

akitio thunder3 duo pro anglelow akitio thunder3 duo pro front akitio thunder3 duo pro back

Resources

Specifications

Model AKiTiO Thunder3 Duo Pro
Part No.
  • T3DP-T3DU3IS-AKTU (without drives)
  • T3DP-T3DU3IS-AKTUH (2 x 1TB SSDs)
Certifications
  • CE
  • FCC
  • VCCI
  • Thunderbolt
Warranty
  • 2-year limited warranty
Case material
  • High quality aluminum for optimized heat dissipation
Application
  • Up to two 2.5" or 3.5" SATA hard disk drives or solid state drives
  • Capacity 80GB - 10TB per drive
  • Two hard drives of identical capacity are recommended
RAID mode
  • Non-RAID
  • SPAN
  • RAID 0 striping
  • RAID 1 mirroring
Interface/Ports
  • 2 x Thunderbolt™ 3 (USB-C) ports
  • 1 x USB 3.1 Gen 1 (Type-B) SuperSpeed port is backwards compatible with USB 2.0
  • 1 x DisplayPort 1.1
Data transfer
  • Thunderbolt 3 up to 40 Gbps
  • USB 3.1 up to 5 Gbps
  • DisplayPort 1.1a (4K at 60 Hz)
System requirements (PC)
  • Windows 7 and later
  • Computer with Thunderbolt™ 3 or USB 3.1 Gen 1 (USB 3.0) port
System requirements (Mac) Not supported
System environment
  • Operating Temperature: 5°C ~ 35°C
  • Storage Temperature: -20°C ~ 60°C
  • Relative Humidity: 5% ~ 95% (non-condensing)
Power supply
  • External power supply (UL, cUL, CE, TUV approved)
  • Input: AC 100-240V, 50Hz-60Hz
  • Output: DC +12V/7.5A
Fan noise level
  • 14.5 dB(A) when fan is turned on
Dimensions (LxWxH)
  • 9.37 inches x 5.63 inches x 3.7 inches
  • 23.8cm x 14.3cm x 9.4cm
Package contents
  • AKiTiO Thunder3 Duo Pro
  • Thunderbolt 3 USB-C cable
  • USB 3.1 Gen 1 (Type-A to Type-B) cable
  • Power adapter
  • Setup guide
Carton/Packing
  • Retail Box Size: 13 x 10.1 x 4.8 in. (33.1 x 25.7 x 12.3 cm)
  • Carton Size (6pcs per carton): 20.8 x 15.4 x 13.9 in. (52.8 x 39 x 35.3 cm)
  • Gross Weight: 2.83 kg (retail box), 18 kg (carton)
Remarks
  • This Thunderbolt product is not compatible with Mac OS X.
  • This product was designed for use with the fan on and passed engineering tests with the fan on. We have added a fan switch that can turn off the fan when a low-noise environment is needed. However, the device should only be used for short periods of time with the fan in the OFF position as prolonged use may cause the device to overheat and this may cause damage to the system, cause issues to data integrity, reduce system reliability and/or shorten the lifespan of the electrical components. For best results, we recommend that the device not be used continuously for more than one hour with the fan in the OFF position.
  • This product has components or design elements that are patented or patent pending.
