NT2 U3e

As of October 1, 2016, the NT2 U3e has been discontinued and this model is no longer being manufactured, sold or maintained.

The NT2 U3e was a dual-bay RAID storage enclosures with a screwless design to easily install and replace up to two 3.5" hard disk drives. The hardware RAID controller supports Non-RAID, RAID 0 and RAID 1. It features a dual-interface USB 3.0 SuperSpeed and eSATA connection.

This model has been replaced by the NT2 U3.1 with a faster USB 3.1 Gen 2 interface up to 10Gbps. The NT2 U3.1 has also been designed for two 3.5" drives and comes with a built-in hardware RAID controller supporting Non-RAID, RAID 0 and RAID 1.






NT2 U3e

The ultra compact design of the NT2 makes this dual-bay RAID storage enclosure one of the smallest in the market, yet it still packs a punch when it comes to flexibility and performance. Installing the 3.5" hard drives is quick and easy, thanks to the screwless design. By incorporating USB 3.0 SuperSpeed technology, AKiTiO's NT2 U3e is able to break the USB 2.0 barrier, delivering up to 10 times the speed of the older USB connection. At the same time, it is still backwards compatible with the widely used USB 2.0 technology.

Features

  • Configurable RAID function (Non-RAID, RAID 0, RAID 1)
  • Supports large volumes in excess of 2TB
  • USB 3.0 SuperSpeed and eSATA connection
  • Backwards compatible with USB 2.0 High Speed
  • Compact and screwless design for easy HDD installation
  • Built-in fan (4000RPM) for extra cooling
  • Security lock slot

Images

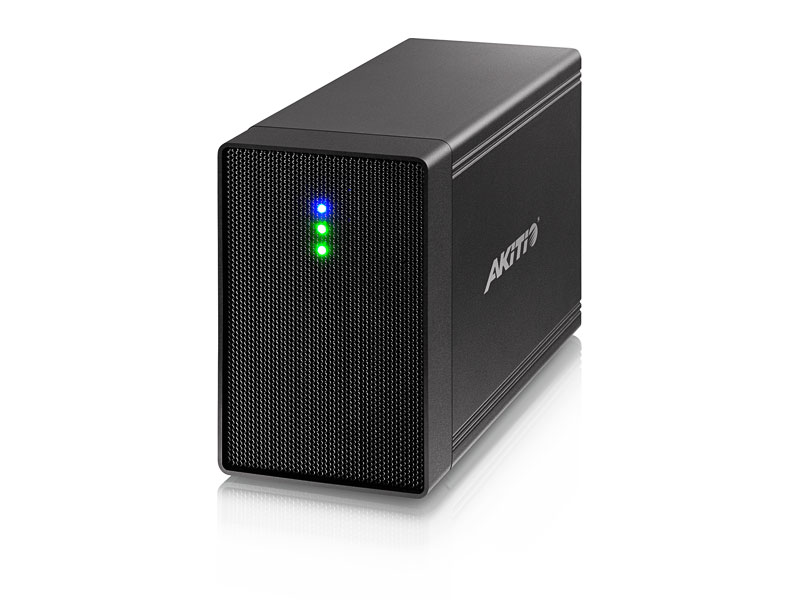

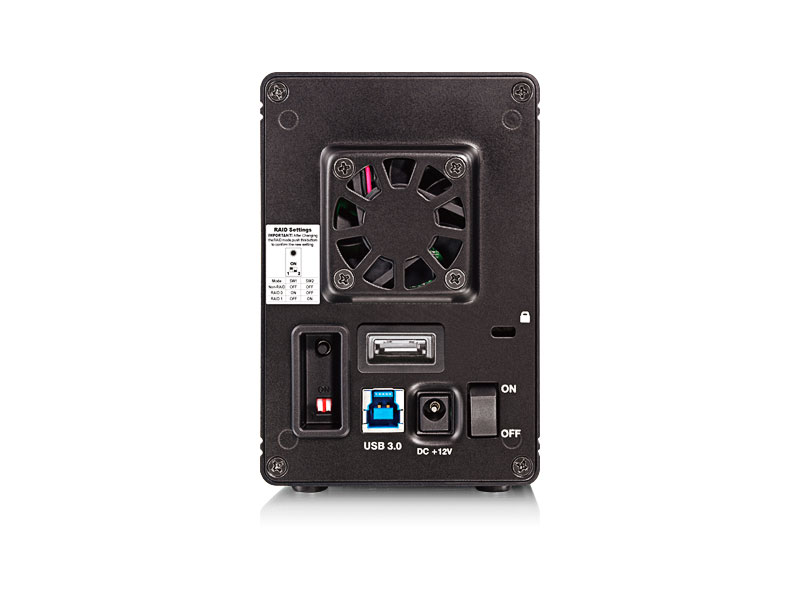

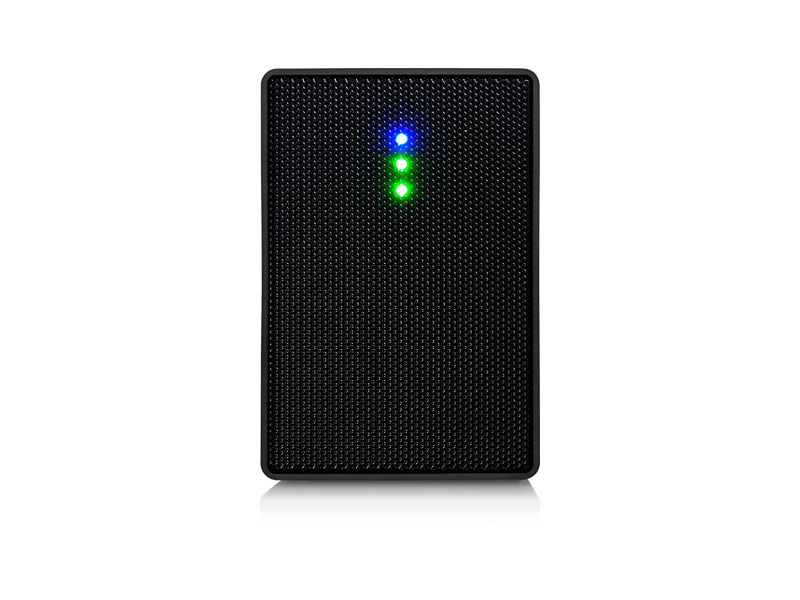

akitio nt2 u3e angle akitio nt2 u3e front akitio nt2 u3e rear

Resources

Specifications

Model NT2 U3e
Part No.
  • NT2-SU3ASA-AKTF (without drives)
  • NT2-SU3ASA-AKTUH (2 x 2TB HDDs)
Certifications
  • CE
  • FCC
  • VCCI
  • BSMI
Warranty
  • 2-year limited warranty
Case material
  • High quality aluminum housing
Application
  • Up to two 3.5" SATA-I, SATA-II or SATA-III hard disk drives
  • Capacity 80GB - 8TB per HDD
  • For RAID 0 & 1, two hard drives of identical capacity are recommended
RAID mode
  • Non-RAID
  • RAID 0 striping
  • RAID 1 mirroring
Interface/Ports
  • 1x eSATA port
  • 1x USB 3.0 SuperSpeed port (backwards compatible with USB 2.0)
Data transfer
  • eSATA up to 3Gbps (300MB/s)
  • USB 3.0 up to 5Gbps (625MB/s)
  • USB 2.0 up to 480Mbps (60MB/s)
System requirements (PC)
  • eSATA: Windows XP or above
  • USB 3.0: Windows XP or above
  • USB 2.0: Windows XP or above
  • Your hardware device must have the correct corresponding port (e.g. USB 3.0, USB 2.0 or PCI card)
  • eSATA Plug and Play support required for eSATA host controller
System requirements (Mac)
  • eSATA: Mac OS 10.4 or above
  • USB 3.0: Mac OS 10.7 or above
  • USB 2.0: Mac OS 10.2 or above
  • Your hardware device must have the correct corresponding port (e.g. USB 3.0, USB 2.0 or PCI card)
  • eSATA Plug and Play support required for eSATA host controller
System environment
  • Operating Temperature: 5°C ~ 35°C
  • Storage Temperature: -20°C ~ 60°C
  • Relative Humidity: 5% ~ 95% (non-condensing)
Power supply
  • External power supply (UL, cUL, CE, TUV approved)
  • Input: AC 100-240V, 50-60Hz
  • Output: DC +12V/3A
Fan noise level
  • 19.3 dB(A)
Dimensions (LxWxH)
  • 7.2 inches x 4.8 inches x 3.2 inches
  • 18.2cm x 12.3cm x 8.1cm
Package contents
  • NT2 enclosure (HDD not included)
  • eSATA cable
  • USB 3.0 cable
  • Power adapter
  • User manual
Carton/Packing
  • Retail Box Size: 10.6 x 8.8 x 5.1 in. (27 x 22.4 x 13 cm)
  • Carton Size (6pcs per carton): 22.4 x 16.5 x 9.8 in. (57 x 42 x 25 cm)
Remarks
  • In order for the computer to access volumes larger than 2TB, both the hardware and Operating System need to support large volumes (e.g.: Windows Vista, Windows 7 or Mac OS 10.4 and above).
